Forks

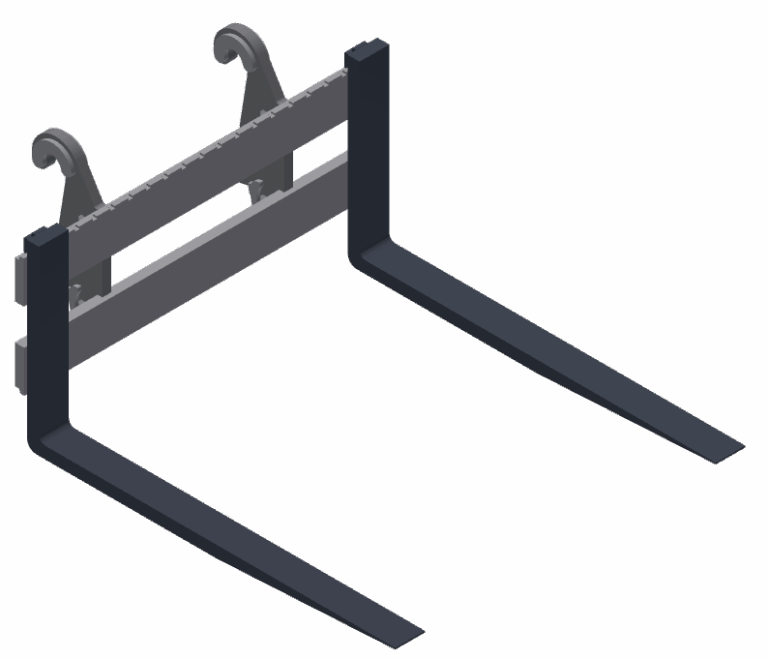

  • Bucket Fork Kit

    The TAG ITA Style Medium Duty Pallet Forks offer a traditional notched backboard style fork for rubber tire backhoes and wheel loaders.

    • Optional top guard / rack available
    • Carriage widths: 48″” – 96″”
    • Tine lengths: 48″” – 96″”

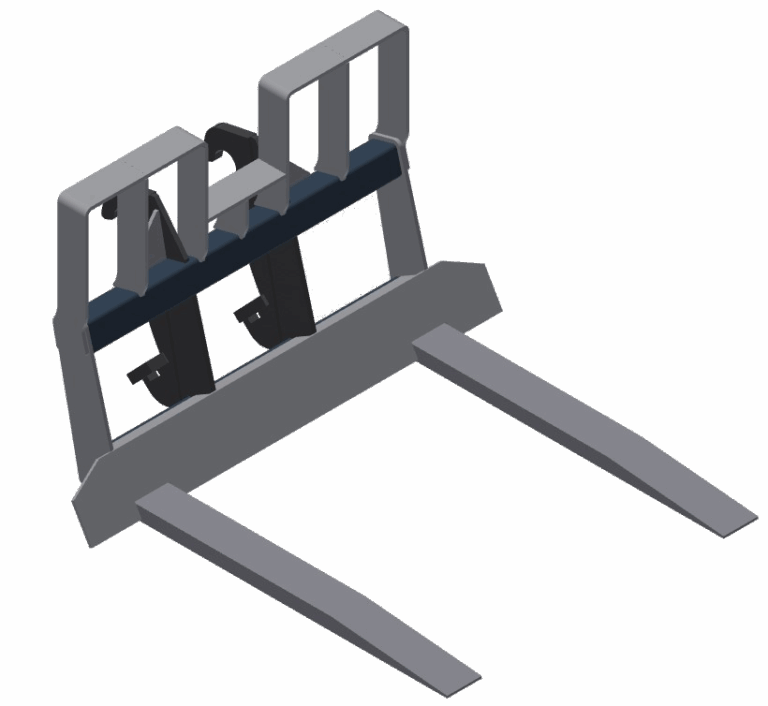

  • Carbody Fork

    The TAG Carbody Forks offer a solution for scrap and salvage applications, allowing the repositioning of vehicles.

    • Heavy-duty carriages
    • Fixed tines, available in top taper for flat bottom or bottom taper for flat top
    • Optional high back guards
    • Carriages: 96″” – 120″”
    • Tines: 60″” – 96″”

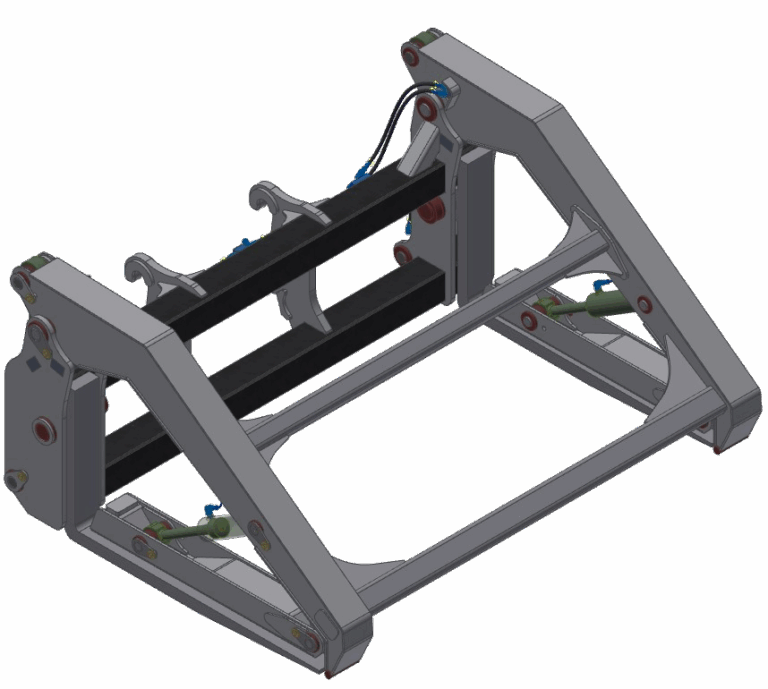

  • Pipe Grapple Fork

    The TAG Pipe Grapple Forks offer a pipe handling solution with a clamp that will secure pipe from falling off the tines.

    • Designed specifically for pipe handling
    • High-strength steel construction
    • Single clamp design with independent hold downs
    • Optional over-bite configuration for clamp
    • Carriages: 96″” – 120″”
    • Tines: 60″” – 72″”
    • Requires 3rd function hydraulics

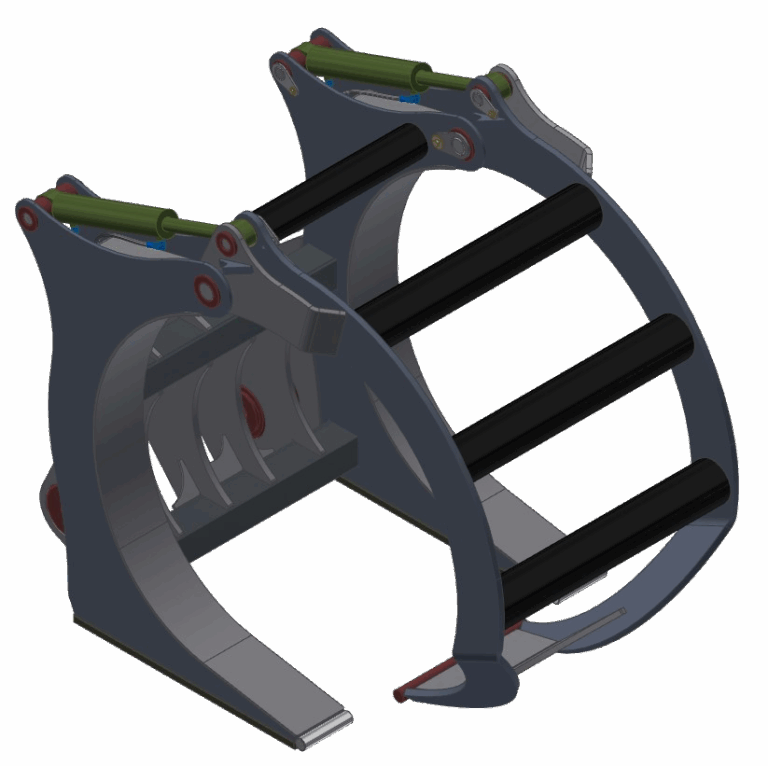

  • Sorting Grapple Fork

    The TAG Sorting Grapple offers a robust boxed tine integrated carriage with a curved paddle-style clamp, providing maximum loading capacities per class of wheel loader.

    • Boxed tines fabricated from high-strength steel
    • Single piece high-strength steel clamp plates & skins
    • Adjustable cross-over relief valve to protect cylinders
    • Oversized heat-treated hinge & cylinder pins
    • Standard weld-on bottom wear strips for additional tine wear protection
    • Carriages: 64″” – 84″”
    • Tines: 36″” – 60″”
    • Requires 3rd function hydraulics

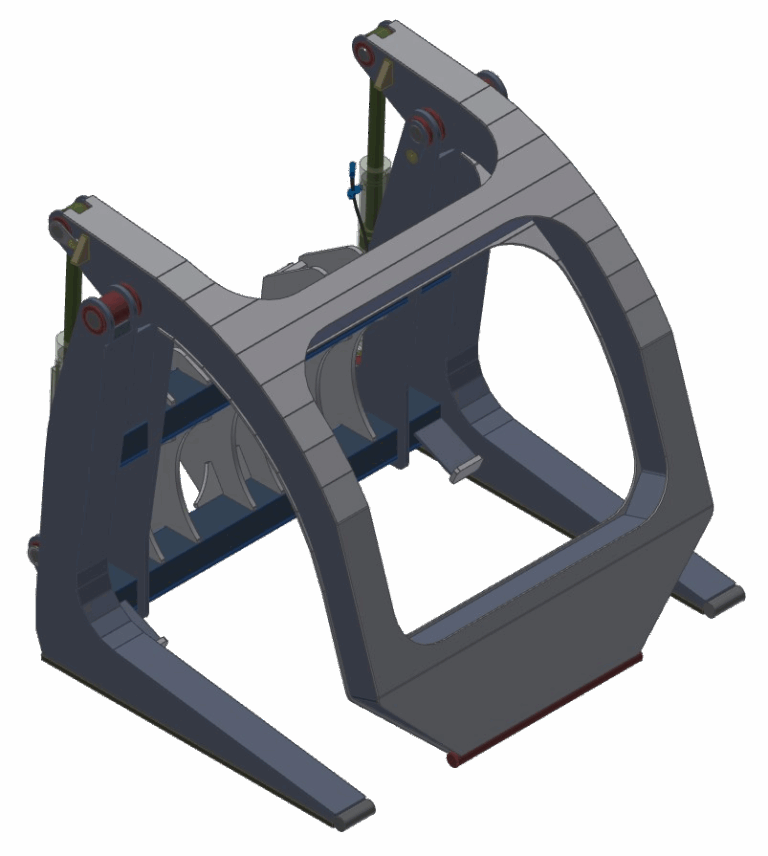

  • Mill Yard Fork

    The TAG Mill Yard Forks offer a robust boxed tine integrated carriage with a paddle-style clamp.

    • Boxed tines fabricated from high-strength steel
    • Single piece high-strength steel clamp plates & skins
    • Adjustable cross-over relief valve to protect cylinders
    • Oversized heat-treated hinge & cylinder pins
    • Standard weld-on bottom wear strips for additional tine wear protection
    • Carriages: 80″” – 110″”
    • Tines: 48″” – 90″”
    • Requires 3rd function hydraulics

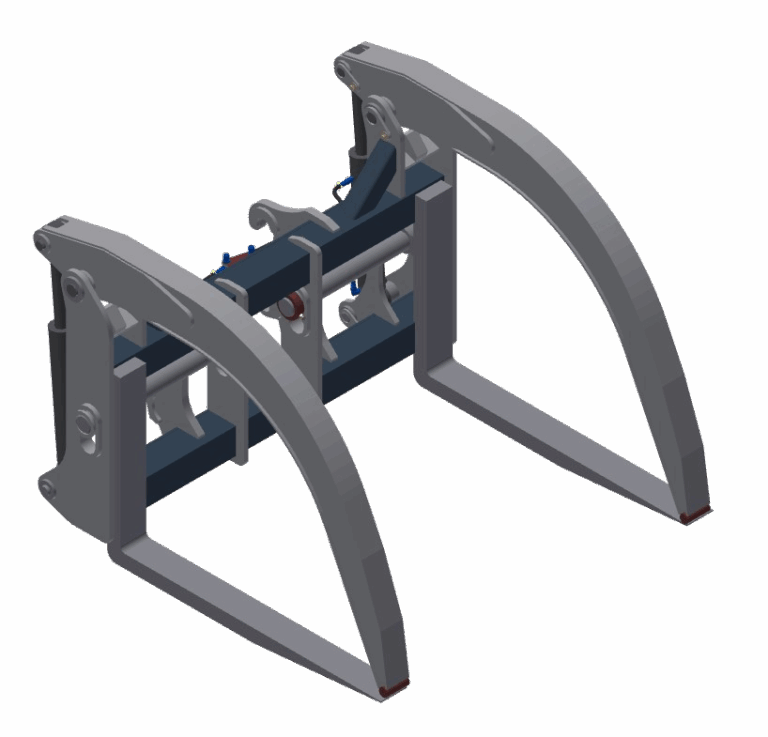

  • Log & Lumber Fork with Clamp

    The TAG Log & Lumber Forks with Dual Clamps offer a heavy-duty clamping fork solution for lumber yards. All the attributes of our standard Log & Lumber Forks plus the addition of dual top clamps for added versatility.

    • Dual clamps are positioned over tines
    • Heavy-duty carriage
    • Full length sides and gussets with optional extra height single piece back stops
    • Rod-mounted tines
    • Carriages offered with fixed tine rods or 5.00″” oscillating rods
    • Split collar lock collars allow repositioning of tines without damaging rods
    • Carriage widths: 60″” – 106″”
    • Tine lengths: 48″” – 96″”
    • Requires 3rd function hydraulics

    See fork carriage configurations for further options

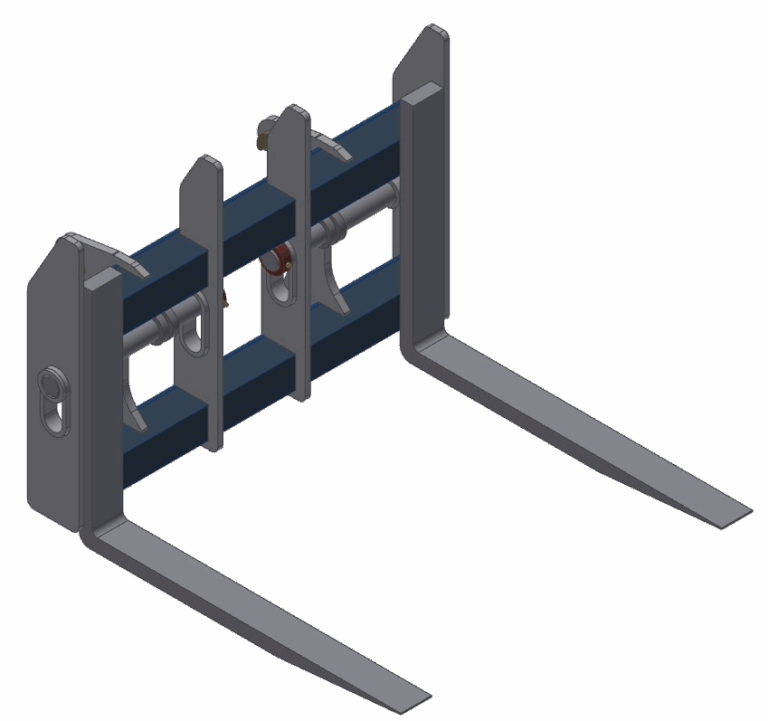

  • Log & Lumber Fork

    The TAG Log & Lumber Forks offer a heavy-duty fork solution for lumber yards.

    • Heavy-duty carriage
    • Full length sides and gussets with optional extra height single piece back stops
    • Rod-mounted tines
    • Carriages offered with fixed tine rods or 5.00″” oscillating rods
    • Split collar lock collars allow repositioning of tines without damaging rods
    • Carriage widths: 60″” – 106″”
    • Tine lengths: 48″” – 96″”

    See fork carriage configurations for further options

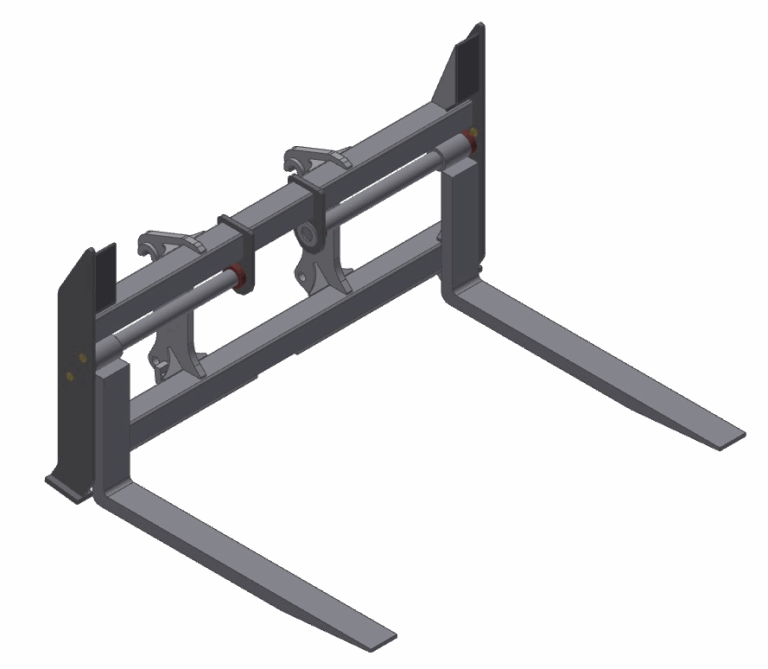

  • Construction Fork (Mechanical & Hydraulic)

    The TAG Hydraulic Construction Forks offer a heavy-duty fork solution for general construction work with the added feature of hydraulically adjusted tines. Tines will evenly narrow and widen from the cab through hydraulic control.

    • Heavy-duty carriage
    • Rod-mounted tines hydraulically adjustable
    • Split collar lock collars allow repositioning of tines without damaging rods
    • Carriage widths: 60″” – 106″”
    • Tine lengths: 48″” – 96″”
    • Requires 3rd function hydraulics

    These will not side shift

    The TAG Mechanical Construction Forks offer a heavy-duty fork solution for general construction work.

    • Heavy-duty carriage
    • Rod-mounted tines
    • Split collar lock collars allow repositioning of tines without damaging rods
    • Carriage widths: 60″” – 106″”
    • Tine lengths: 48″” – 96″”
