Couplers

  • Xtreme Duty Hyd Coupler

    The TAG Xtreme Hydraulic Quick Couplers are designed for demanding applications but still offer all the conveniences of our standard hydraulic coupler plus the following:

    • Severe duty reinforced carriage
    • Standard full debris covers & plating
    • Dual (2) cylinder interface
    • Recommended for forestry and recycling applications
    • Includes hydraulic kit

    See OEM Coupler Series offerings

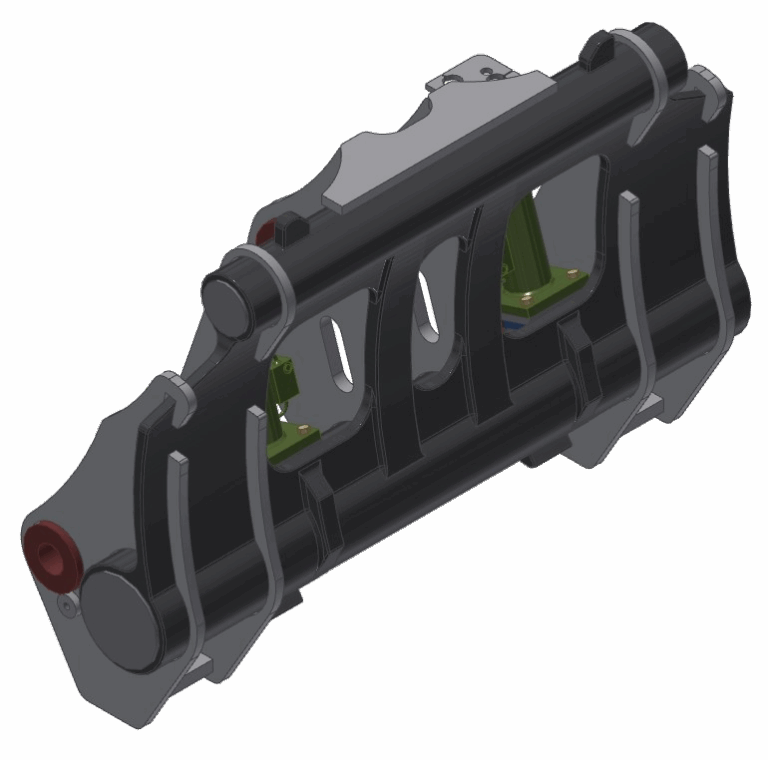

  • TAG Series 9 Hyd Coupler

    The TAG Hydraulic Series 9 Quick Couplers offer an interchange solution that is compatible with the CAT style vertical twin cylinder attachments.

    • Robust heavy-duty carriage
    • Twin vertical cylinder interface
    • Includes hydraulic kit

    Not compatible with CAT style IT couplers with horizontal cylinder

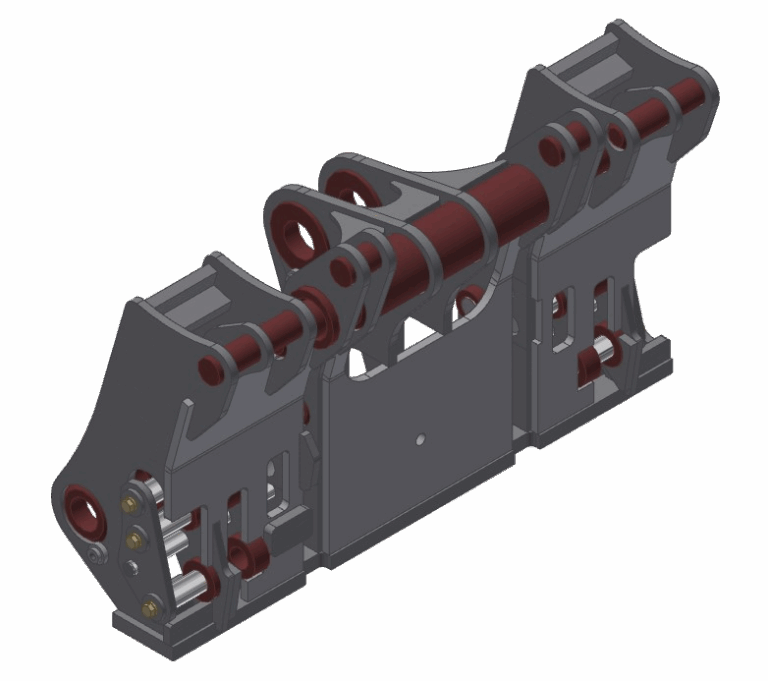

  • Hydra Multi-QC Coupler

    The TAG Hydra Multi Couplers offer interchange between CAT IT, JRB, and Volvo / Hi Vis attachments within a single coupler unit.

    • Robust heavy-duty carriage
    • Interchangeability: CAT IT, JRB & Volvo / Hi Vis
    • Includes hydraulic kit

    See OEM Coupler Series offerings

  • Mechanical Coupler

    The TAG Mechanical Quick Couplers offer an economic interchange solution with the same carriage design as our hydraulic version for most OEM quick coupler configurations.

    • Robust heavy-duty carriage
    • Reliable two (2) pin design

    See OEM Coupler Series offerings

  • Hydraulic Coupler

    The TAG Hydraulic Quick Couplers offer quick interchange between attachments while staying in the cab and are offered for OEM quick coupler configurations.

    • Robust heavy-duty carriage
    • Reliable single (1) cylinder & two (2) pin design
    • Includes hydraulic kit

    See OEM Coupler Series offerings

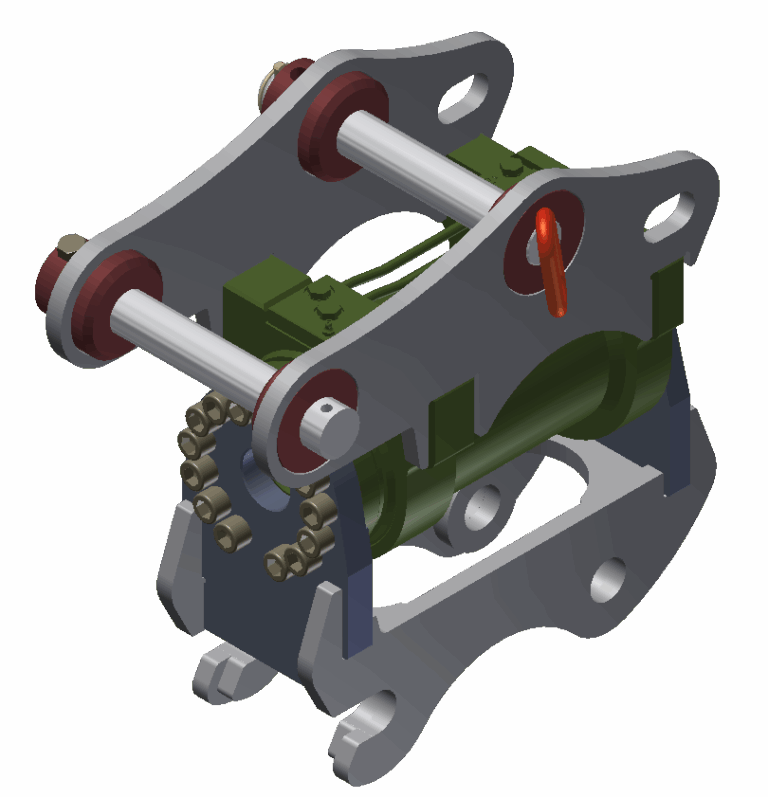

  • Powertilt Coupler

    TAG Powertilt Couplers offer a tilting solution for any attachment that can be pinned to a machine. Manufactured with Parker/Helac next generation actuators.

    • Available styles: hydraulic multi lock pin grabbing, mechanical half hitch pin grabbing, TAG QC series, Deere/Hitachi wedge style, Kubota wedge styles
    • Up to 180 degrees of attachment rotation

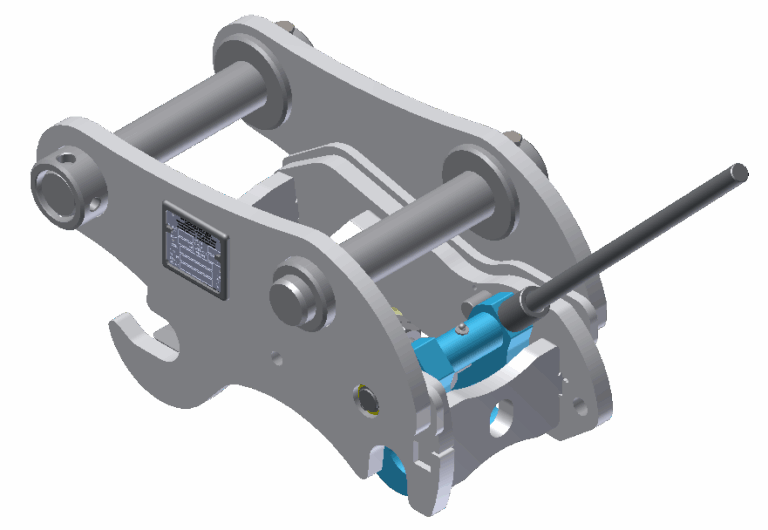

  • Mechanical Pin Grabber Coupler

    Dromone Mechanical Pin Grabbing Couplers provide a reliable, economical, productive solution for rubber tire backhoes and excavators (2T to 20T). These couplers are offered in two variations based upon machine class.

    • Spring Latch Style for rubber tire backhoes & compact excavators (2T-8T)
    • Screw & Hitch Slide Style for full-sized excavators (12T-20T)
    • Both maximize productivity with fast, secure attachment changes.

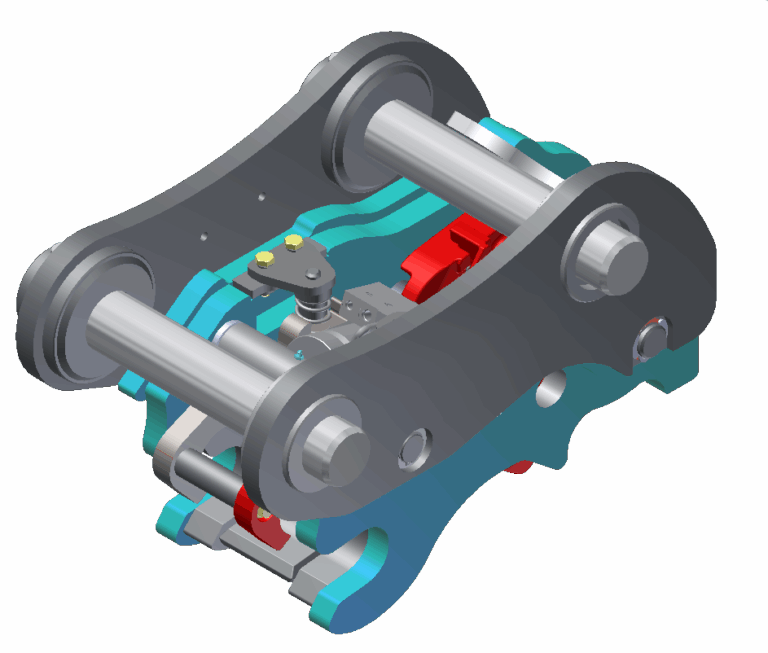

  • Hydraulic Multi Lock Coupler

    Dromone Multi-Lock Couplers are constructed from high-strength steel and quality materials, delivering consistent quality, durability, and superior performance. With an ideal balance between weight and pick-up range, the Dromone Multi-Lock quick coupler offers efficiency and superior breakout force.

    • 2- to 120-ton machine capacity.
    • Efficient coupler weight and pick-up range.
    • Superior breakout force.
    • Increased attachment size flexibility.
    • Higher asset utilization.
    • Heavy-duty certified lifting eye.
    • Learn more at www.dromone.com for more information.

    Unlocking & lock procedure: All controls are cab-mounted. Two-button operation: press Power On/Off, then the control button. Curl the attachment into the over-relief position to disengage the hydraulic lock. Roll the attachment out and place it on the ground. Reverse these steps to reattach the attachment.

    Safety: Always visually inspect and confirm the safety pin or prop lock is fully closed and locked before operating the machine. Read and understand all safety precautions in the operator’s manual before attempting any operation.

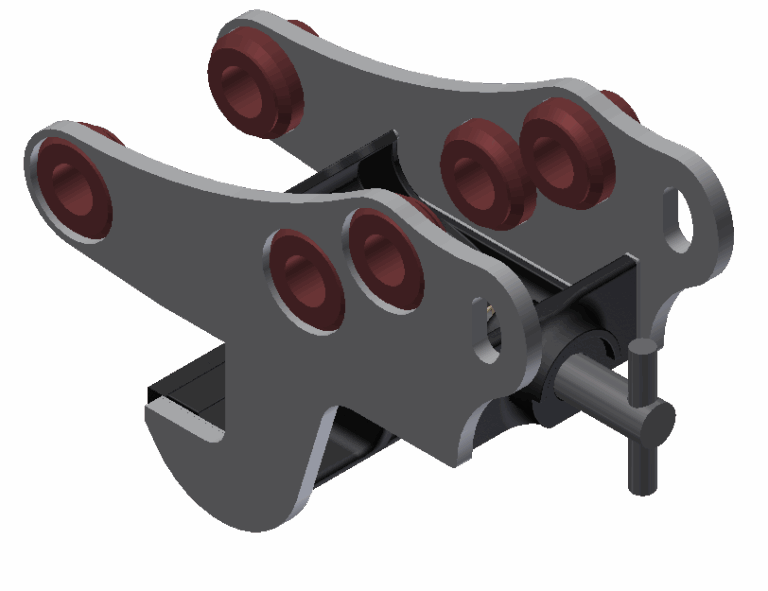

  • TAG QC Coupler

    TAG Mechanical QC Quick Couplers offer a simple hook and T-handle pin design that provides quick interchanges and optimizes digging forces. The patented Adjust-A-Hook quick coupler offers increased strength and replaceable wear parts for extended life.
