Buckets

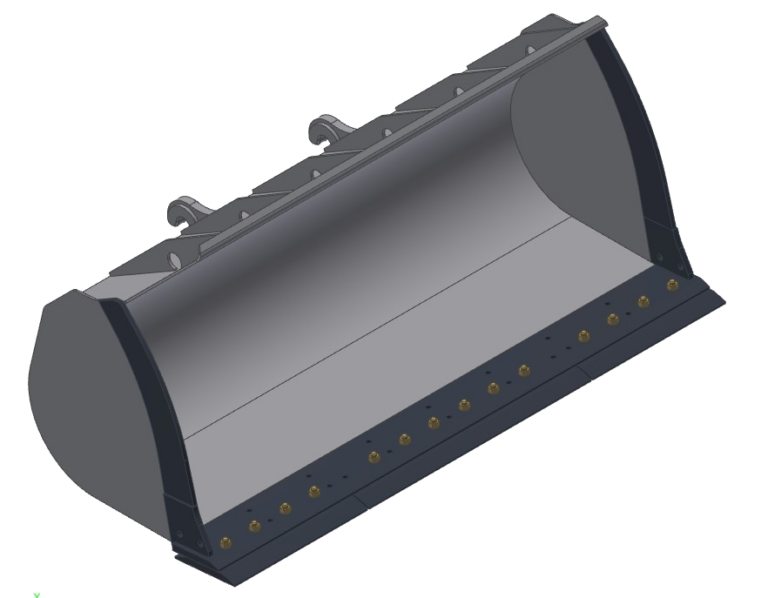

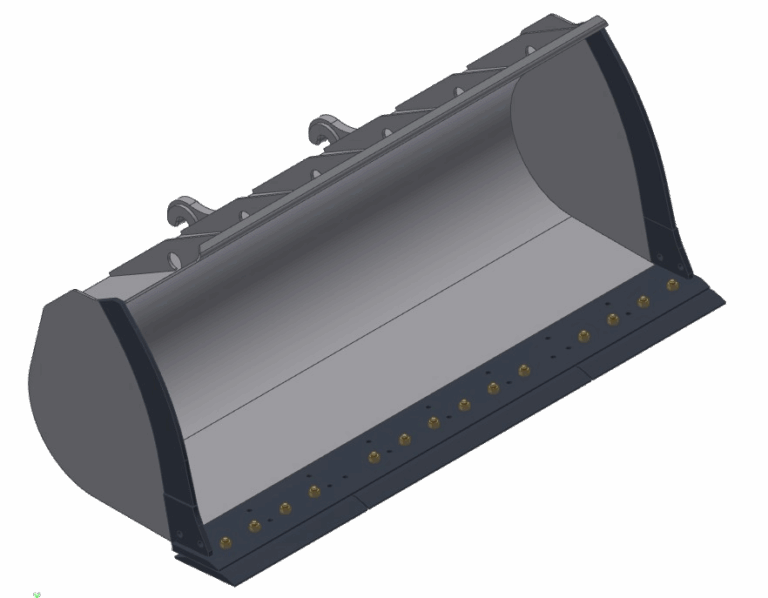

The TAG General Purpose Crawler Buckets are designed for basic dirt handling needs. These buckets handle material up to 3,200 lbs per cubic yard.

• Includes bolt-on edge & rear wear pads
• Tooth and segment options available

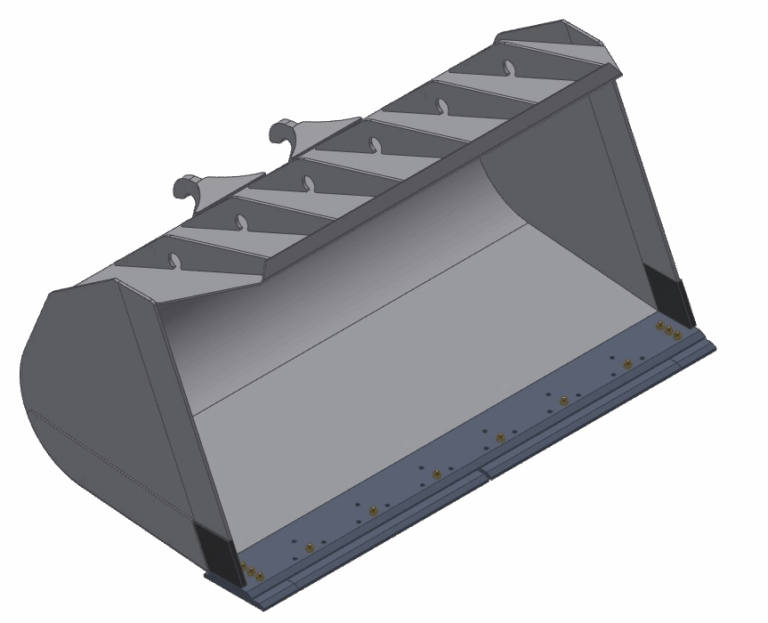

The TAG Rubber Tire Light Material Buckets are designed to handle material up to 1,800 lbs per cubic yard.

• Includes bolt-on edge

The TAG Side Dump Buckets allow material to be dumped to the left or right-hand side of the machine.

• Left-hand dump standard, right-hand dump available
• Chute dumps at 45-degree angle
• Includes bolt-on edge & rear wear pads
• Requires 3rd function hydraulics

The TAG High Tip Rollout Buckets offer fast and reliable dumping with twisting and flex resistance at maximum heights.

• Wide based, twin cylinder sub carriage
• Full mechanical stops ensure greater reliability
• Low volume cylinder housing increases bucket capacity
• Open cylinder housings reduce material build-up
• 3rd function hydraulics required

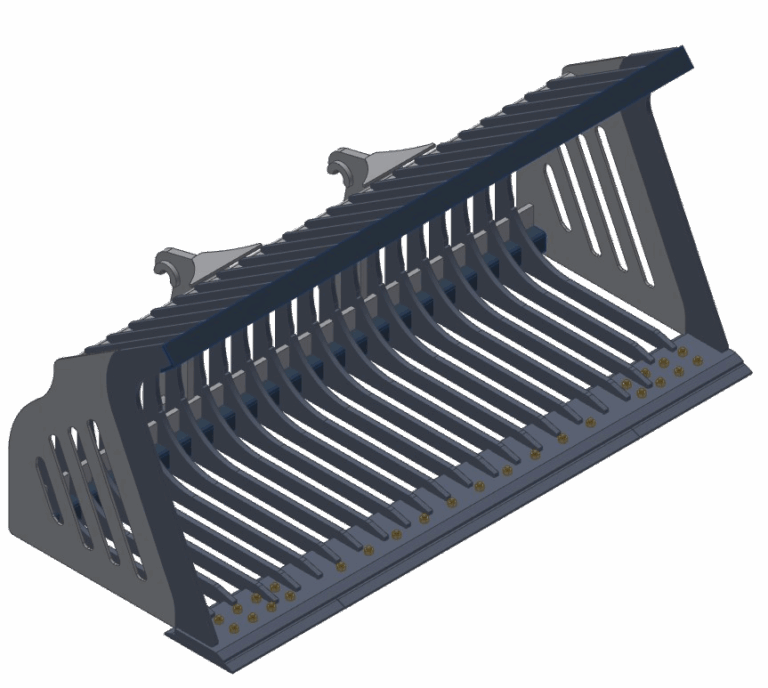

The TAG Skeleton Rock Buckets offer a solution for applications that allow fill material to flow through the bucket and provide more capacity for rock only. Tine spacing and thickness can be customized to customer-specific needs.

• Includes double beveled, reversible bolt-on edge
• Tooth and segment options available

Waste Transfer Station Large Capacity Buckets are built for efficiency and customizable for your operation.

• High-capacity design for heavy-duty waste handling
• Pushing and Loading Profiles available
• Compatible with pin-on or quick coupler setups
• Available with solid or laminated rubber edges and rear wear pads.

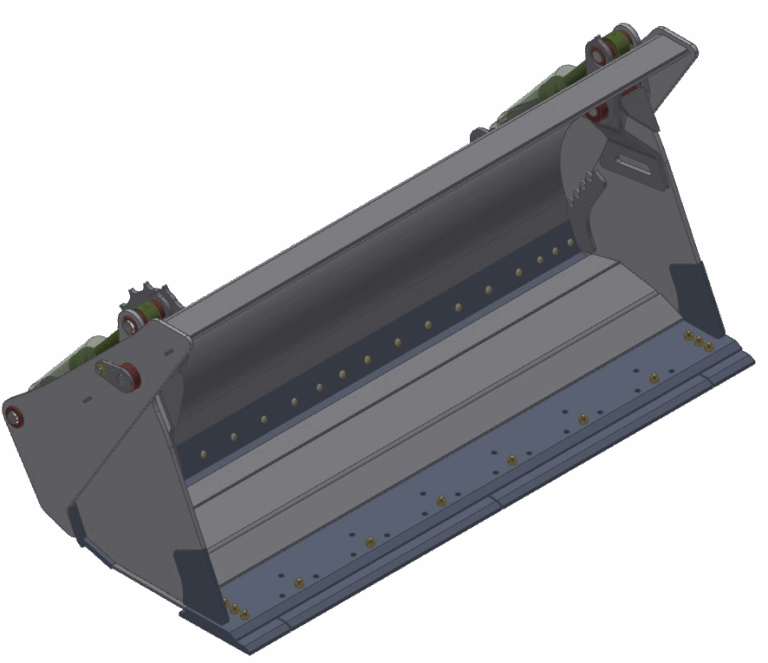

The TAG Multi Purpose (4:1) Buckets offer an attachment that will load, grade, and backfill material all within a single attachment.

• Includes bolt-on edges
• Tooth and segment options available

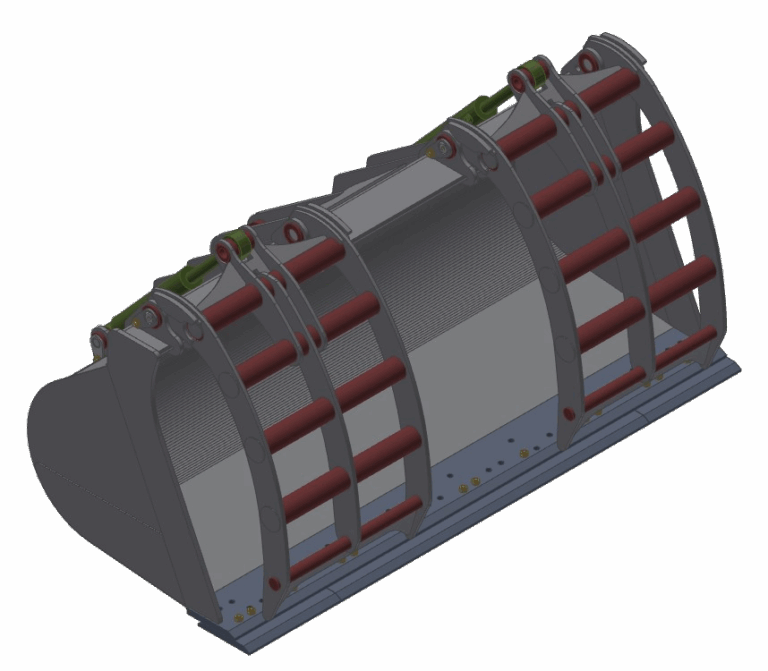

The TAG Heavy Duty Recycling and Waste Transfer Grapple Buckets are designed for continuous cycle duty applications with robust ladder-style clamps and larger hinge pins and clamp stops.

• Three (3) side profiles available: full sides, half sides, cut-away sides
• Includes bolt-on edge & rear wear pads
• Optional rubber edges and rear wear pads
• Requires 3rd function hydraulics

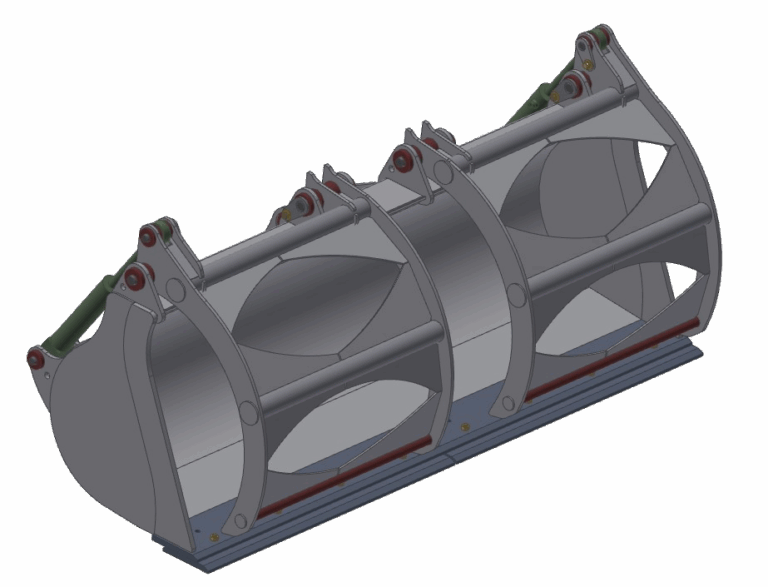

The TAG Debris and Brush Grapple Buckets with two (2) independent top clamps are designed for general duty debris cleanup and lightweight loose materials.

• Three (3) side profiles available: full sides, half sides, cut-away sides
• Three (3) clamp configurations: standard open clamps, enclosed clamps with solid plating, expanded metal clamps
• Includes bolt-on edge & rear wear pads
• Requires 3rd function hydraulics

For continuous duty cycle application and recycling applications please refer to Heavy Duty Recycling Grapple Buckets

The TAG Heavy Straight Lip Rock Buckets offer a solution for rock-intense applications.

• Includes bolt-on edge & rear wear pads
• Tooth and segment options available
• Additional options: weld-in liners, tire kickers

Call for SXD mining options

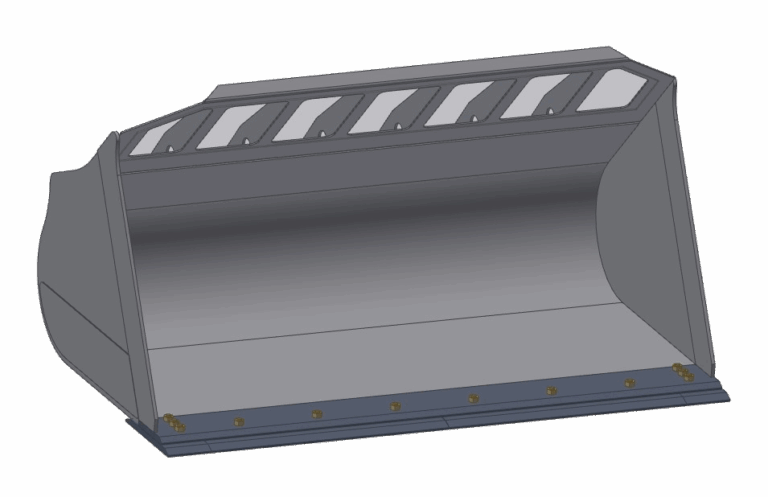

The TAG Ultra Light Weight Wood Chip Buckets are designed to handle material up to 1,000 lbs per cubic yard.

• Standard full screen spill plate
• Optional solid or partial spill plates
• Includes bolt-on edge & rear wear pads
